GRL-C3-MP-TPR & GRL-C3-TPT Qi2 Wireless Charging Transmitter & Receiver Testers

Download Datasheet

Product Overview

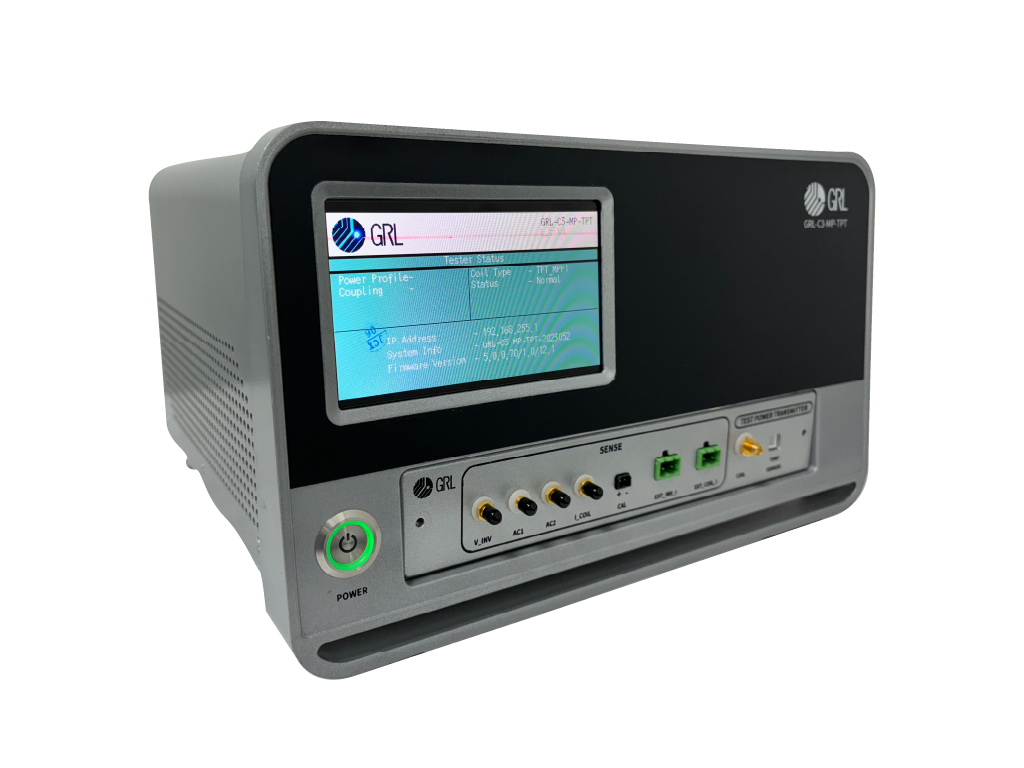

The GRL-C3-MP-TPR and GRL-C3-TPT are the latest automated Qi2 wireless charging test solutions for OEMs and developers test wireless chargers and smartphones respectively. Both solutions are designed to help users keep up with ever-developing wireless charging standards without compromising on quality, convenience, or data security. With a comprehensive suite of features and a user-friendly interface, the GRL-C3-MP-TPR & GRL-C3-TPT lets you go beyond mere compliance and achieve superior product design that can help capture significant portions of the global wireless charging consumer market.

Test Qi and Qi2 wireless charging products for market launch affordably and reliably
Easily upgrade to the latest Qi standard with its modular design
View vital information at a glance with all-in-one protocol & trace viewer that includes:
- Current
- Power
- Protocol
- Temperature
- Voltage
- Test results

Key features

Unique protocol and trace viewer: View essential test information such as protocol, voltage, current, and measurement results from a single window, generated and arranged neatly by a powerful and comprehensive protocol and trace viewer.
Fully automated compliance testing and debugging: Automated compliance testing and rapid debugging can be conducted within the Exerciser mode that is designed with an intuitive interface and in-built algorithms.
Modular design for quick and affordable upgrades: Between 2010 and 2023, the Wireless Power Consortium (WPC) has released a total of five wireless charging versions, with the most recent being the Qi2/Qi2.0 MPP. With the GRL-C3-MP-TPR, OEMs and developers can easily keep up with future wireless charging standards as they arise through modular upgrades instead of purchasing an entirely new solution.
Offline JSON report analyzer + Authentication Validator for data security: Collaborate effortlessly while keeping proprietary data safe with the offline JSON viewer/editor and Authentication Validator which can be easily accessed from a computer.
Trusted 3rd party calibration: GRL Wireless Power Test Solution is the only solution that comes with supporting 3rd party calibration service.
Affordable and accessible test solution for wireless OEMs and developers: Both the GRL-C3-MP-TPR & TPT solution and accompanying calibration test services are designed to help OEMs and manufacturers test for wireless charging performance and compliance with minimal overhead cost.

Options & Accessories

The following optional accessories are available for manufacturers and developers who wish to test their products for compliance with the latest Qi v2.x wireless charging standards as well as preceding power profiles including Qi 2.0 MPP, Qi 2.0 or 1.3.3 BPP, and Qi 2.0 or 1.3.3 EPP.

Wireless charging solutions for Qi 2.1 standards and beyond

GRL LCR Coil Test Jig

GRL LCR Jig is used to measure coil/cable parasitic measurement

GRL LCR SMA Fixture

GRL LCR fixture board used to connect to LCR Meter.

GRL Positioning Tool

	GRL Positioning Tool used to fix the exact position of the coils [(0,0) (2,2)].
	Use the Z spacer to measure the (2,2) Position.

Connectors & Cable Accessories

	Zero Ω SMA connector used to terminate the GRL LCR Jig R_x and T_x ports to measure the Jig parasitic value.
	SMB short used to SHORT the calibration of the LCR Meter.
	BNC to SMA cable
	SMB to SMB cable

Learn more about the LQK measurement procedure here.

LQK measurement test procedure setup

Legacy Qi wireless charging standard solutions (2.0 and prior)

GRL-C3-MP-TPR: GRL Qi 2.0 MPP Power Transmitter Compliance Tester
GRL-C3-WP-TPR: GRL Qi 2.0 / Qi 1.3.3 Power Transmitter Compliance Tester
GRL-C3-TPT: GRL Qi 2.0 / Qi 1.3.3 and Qi2.0 MPP Power Receiver Compliance Tester
GRL also provides Qi wireless charging certification services at our Authorized Test Labs (ATLs) located worldwide.
For a dedicated solution for BPP and EPP testing, check out the GRL-WP-BST-C3.

For inquiries on which accessory to purchase and future upgrades, simply reach out to us. Alternatively, you may also subscribe to our newsletter or follow us on LinkedIn to stay updated

Download & Purchase

For more technical details, download the datasheet for GRL WPC Qi Wireless Charging Base Station Tester (GRL-C3-MP-TPR) or GRL WPC Qi Wireless Charging Receiver Tester (GRL-C3-TPT). Alternatively, you may request a demo to watch either solutions in action.

Other Products

GRL WPC Qi Wireless Charging Base Station Tester (GRL-WP-BST-C3)

Automated all WPC mandated Qi power profile tests (BPP amd EPP) efficiently and effectively with the GRL-WP-BST-C3.

USB Power Delivery and Type-C® Tester and Analyzer (GRL-USB-PD-C2)

GRL-USB-PD-C2: The only instrument you need for USB Type-C Power Delivery and Alt Mode compliance testing.

USB Type-C® Power Delivery Performance Analyzer (GRL-USB-PD-A1)

Analyze performance of USB PD 3.0 and other USB Type-C connector and technologies with the GRL-USB-PD-A1.

Global Qi2 wireless charging market projections

Between rapidly growing demand for electrical automotives and wireless charging handheld devices, the global wireless charging market size is projected to grow at a CAGR of 22.73% and reach a total value of $34.65 billion by 2030. As a global open standard created by the WPC, Qi eliminates the need for physical cables by allowing certified receiver devices to be charged on charging stations through the power of electromagnetic induction. Manufacturers worldwide are already exploring ways to take advantage of Qi wireless charging to bring greater user convenience, such as wireless charging pads that can charge multiple devices at the same time.

Test components for Qi2 compliance, consumer safety, and interoperability

Wireless charger authentication

Qi2 promises to resolve wireless charging inefficiencies by securing chargers and receiving devices within optimal positions using the Magnetic Power Profile (MPP) to ensure maximum energy transfer. On top of that, all wireless chargers that transfer chargers of more than 5W are required to have a built-in authentication process as mandated by the WPC.

Electromagnetic induction safety

Electromagnetic induction generates more heat than conventional wired charging, which can damage battery life or even result in harm to end-users. Qi-certified wireless chargers need their charging speeds to be regulated to prevent uncontrolled heat generation, as well as a safety mechanism that detects excessive heat and shuts off the induction process when necessary.

Foreign object detection

The presence of foreign objects between transmitter and receiver can impede charging speeds or even result in product damage or injury, which is why the latest Qi2 standard has incorporated more accurate foreign object detection capabilities that shut off charging when potential hazards or other incompatible objects are placed on the charger.
