USB4® Version 2.0 Receiver Calibration and Test Automation Software (GRL-USB4-V2-RXA)

GRL's complete USB4® Version 2.0 solution includes:

• USB4® Version 2.0 Transmitter Test Automation (GRL-USB4-V2-TX)
• USB4® Version 2.0 Return Loss Test Automation Software for the Keysight ENA (GRL-USB4V2RL-KS)
• USB4® Version 2.0 Return Loss Test Automation Software for the Anritsu ShockLine™ Performance VNA (GRL-USB4V2RL-AN)

Quickly test your Receiver TER and Frequency Variation to the USB4® Version 2.0 Gen 4 standard with the Anritsu MP1900A BERT and Keysight & Tektronix high-performance scopes

Key features

• Automates USB4® Gen 4 80 GT/s (40G x 2) Receiver stress signal calibration and tests for Receiver compliance at the push of a button
• Compatible with Keysight and Tektronix real-time scopes
• Receiver stress tolerance and frequency variation testing at spec and user-defined parameters
• Supports SigTest application for post-processing of stressed signals

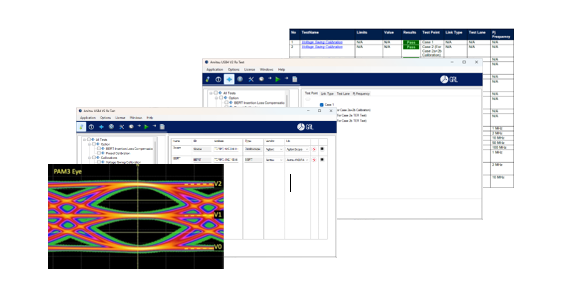

• Simple setup, test execution and reporting
• Achieve consistent results with rapid test execution

• Enables EV engineers to evaluate receiver robustness in automotive-grade components, ensuring reliable high-speed links for infotainment, ADAS, and digital cockpit systems

Description

Developed by a recognized world leader in Thunderbolt and USB testing, GRL’s USB4® Version 2.0 Receiver Calibration and Test Automation software for the Anritsu MP1900A BERT provides an automated and efficient way to test your USB4® Gen 4 Receiver.  As EV architectures increasingly rely on high-speed data channels, GRL-USB4-V2-RXA helps manufacturers verify receiver compliance under stressed signal conditions, critical for maintaining performance in the vehicle environment. GRL-USB4-V2-RXA automates the Anritsu MP1900A BERT and Keysight or Tektronix real-time oscilloscope to calibrate the BERT and overall channel stress signals to worst-case condition. Following the USB4® Version 2.0 CTS, GRL-USB4-V2-RXA provides a simple user interface to perform complex USB4 Gen 4 testing, and significantly reduces equipment calibration and test time.

GRL-USB4-V2-RXA supports testing for USB4 Gen 4 receiver TER compliance without FEC and frequency variation for Case 1 and Case 2. GRL-USB4-V2-RXA runs on Windows 11+ PC or oscilloscope, and works with USB4 Version 2.0 high-speed test fixtures and microcontroller, making it a valuable tool for EV-focused labs validating reliable data transfer across connected car platforms.

• GRL-USB4-V2-RXA - GRL USB4 Version 2.0 (80 Gbps) Receiver calibration and test software for the Anritsu MP1900A BERT. Compatible with Keysight and Tektronix real-time oscilloscopes.
• GRL-USB4-V2-TX - GRL USB4 Version 2.0 (80 Gbps) Transmitter test software. Compatible with Keysight real-time oscilloscopes.
• GRL-USB4-V2-TXRX - Bundled TX and RX solution: GRL USB4 Version 2.0 (80 Gbps) Transmitter & Receiver calibration and test software for the Anritsu MP1900A BERT and Keysight & Tektronix real-time oscilloscopes. [Note: GRL-USB4-V2-TX is currently ONLY compatible with the Keysight oscilloscope.]
• GRL-USB4V2RL-KS – GRL USB4 Version 2.0 (26.5 Gbps) Host and Device Return Loss Test Automation software for the Keysight ENA.
• GRL-USB4V2RL-AN – GRL USB4 Version 2.0 (26.5 Gbps) Host and Device Return Loss Test Automation software for the Anritsu MS46524B VNA.

Download the GRL USB4® Version 2.0 Receiver Calibration and Compliance Test Automation Solution (GRL-USB4-V2-RXA) datasheet by filling in the form below, or contact GRL to request a demo.
