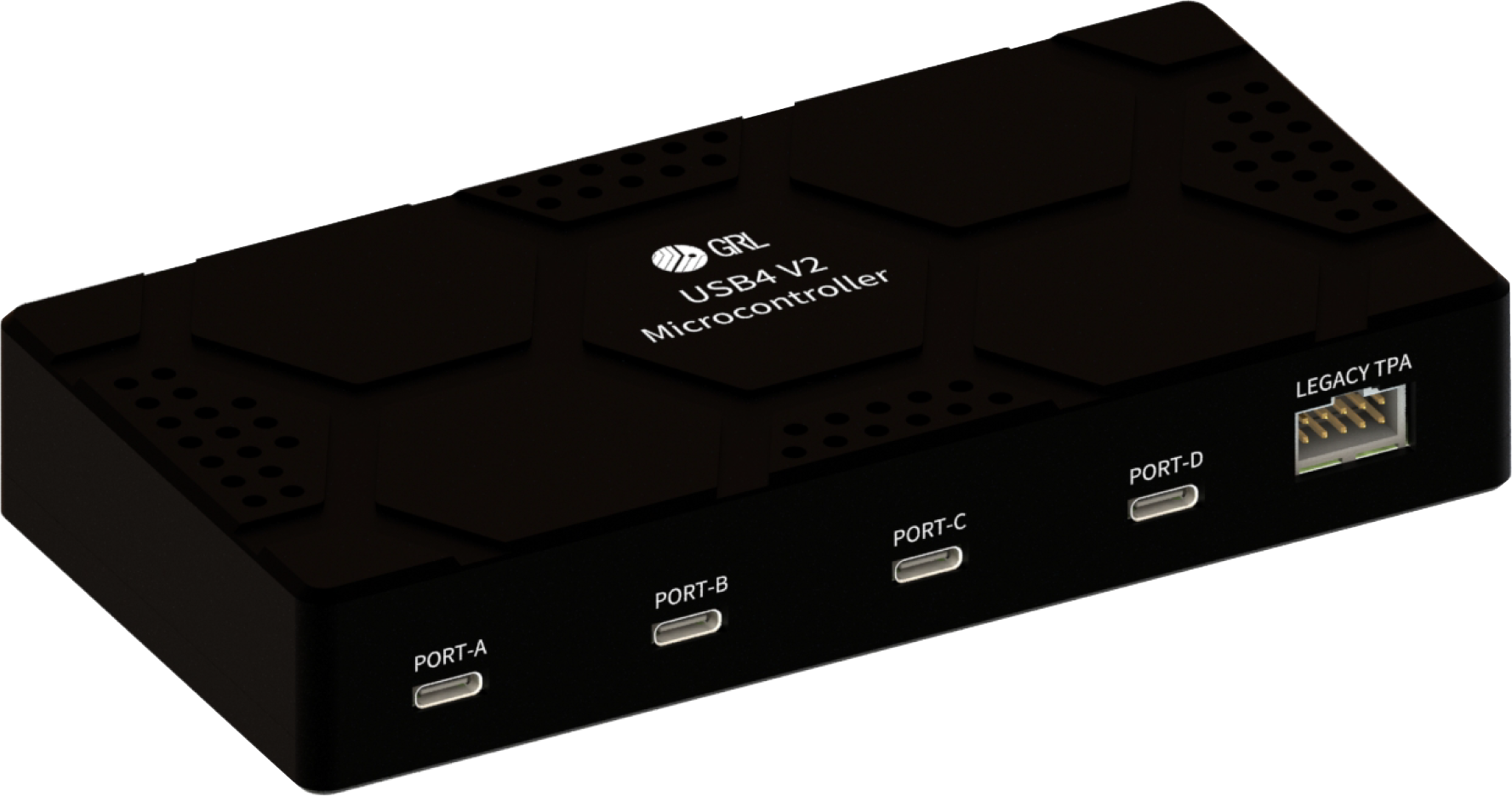

USB4® Version 2.0 PHY Microcontroller (GRL-USB4V2-Controller)

Description

Developed by a recognized world leader in Thunderbolt and USB testing, GRL’s USB4® Version 2.0 PHY Microcontroller provides reliable communication and interoperability over the USB4 Version 2.0 platform to test your 80 Gbps hosts and devices to the USB4 Version 2.0 Gen 4 (Revision 0.9) standard. In addition, GRL-USB4V2-Controller also supports USB4 v1.0 Gen 3 & Gen 2 connectivity and data speeds.

GRL-USB4V2-Controller puts the DUT into the right state for USB4 testing when paired with the USB Type-C passive cable and USB4 test fixture. GRL-USB4V2-Controller directly controls the DUT by executing microcontroller test scripts.

Our USB-IF certified USB4 Version 2.0 microcontroller works seamlessly with USB4 receiver, transmitter and return loss automation solutions to automatically test any USB4 Gen 4, Gen 3 or Gen 2 host or device port(s). With strong and flexible microcontroller support, users can simplify their testing and significantly reduce equipment calibration and test time.

Key Features

• Complies with official standards of USB4 Version 2.0 supporting a dual-channel 80 Gbps transmission speed with PAM3 signals or up to 120 Gbps when configured asymmetrically.
• Equipped with various types of connection ports including USB Type-C, USB Type-A & B, DisplayPort and legacy test adapter connectors to accommodate different fixture and cable setups.
• Supports the USB-IF Electrical Test Tool (ETT) application for DUT control.
• Backwards compatible with USB4 v1.0 Gen 3 & Gen 2 standards.
• Affordable and easy to set up.

GRL-USB4V2-Controller - GRL USB4 Version 2.0 (80 Gbps) PHY Microcontroller. Compatible with the USB4 v1.0 specification. Shipped with power supply, USB Type-C cable and USB Type-A to Type-B cable for accessories.

Fill in the form below to obtain your free copy of the USB4® Version 2.0 PHY Microcontroller (GRL-USB4V2-Controller) factsheet, or contact GRL to request a demo.
