Quickly test your Design to the IEEE 802.3ck (Draft 3.1) 400GBASE-CR4 (twinax cable) and 400GBASE-KR4 (backplane) standards
Product Overview
GRL-8023CK-CRKR-RXA provides comprehensive automation to calibrate and test your 106 Gbps (53 Gbaud PAM4) receiver to the IEEE 802.3ck (Draft 3.1) 400GBASE-CR4 (twinax cable) and 400GBASE-KR4 (backplane) standards. Quickly run receiver jitter and interference tolerance test suites with a fast, industry-accepted, repeatable setup following CR (Section 162) and KR (Section 163) test guidelines.
At the push of a button, calibrate jitter and interference tolerance with victim, FEXT, and noise signal sources and jitter amplitude, and apply the Channel Operating Margin (COM) method of added noise amplitude.
Key Features
- Automates RX interference and jitter tolerance calibration and test (Case1 and Case2 channel test cases) for the 802.3ck 100GBASE, 200GBASE and 400GBASE CR/KR interfaces using leading test equipment.

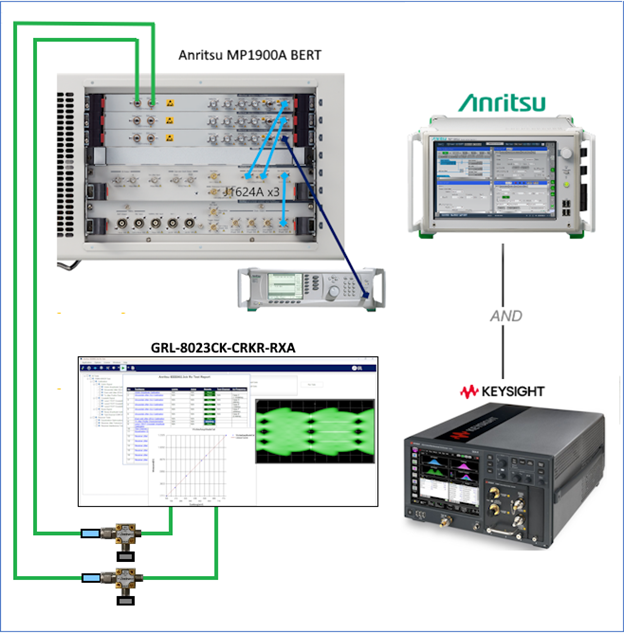

- Compatible with Keysight DCA-X sampling oscilloscope paired with the Anritsu MP1900A BERT for calibrating Receiver interference and jitter tolerance.
- Automates up to 3 FEXT crosstalk sources.
- Automates RX equalization setting search optimization.
- Automates Gaussian noise injection using Anritsu internal pattern generator or Noisecom J9078/equivalent external source.
- Provides user configuration of standard and custom settings to accommodate different test environments.
- Affordable test solution with debug function helps users obtain reliable and repeatable results.
- Runs directly on the oscilloscope or remotely on a Win7+ PC. Automatically sets up the scope and captures the required waveforms. Report generation is easy.
